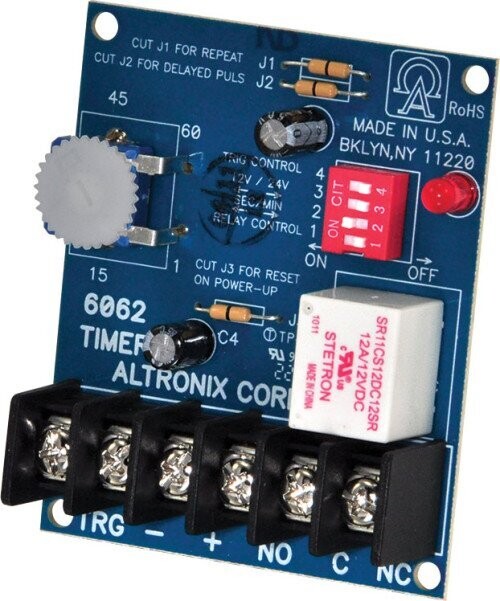

Atronix 6062 Multi-Purpose Timer (12-24VDC 8AMP SPDT)

Atronix 6062 Multi-Purpose Timer (12-24VDC 8AMP SPDT)

Back to catalog
$25.00
In stock: 1 available
Product Details
Brand: Altronix

  • Input
    • 12VDC or 24VDC operation is selectable.
  • Current Draw
    • Stand-by: 3mA, Relay energized: 40mA.
  • Relay
    • Selectable relay activation at the start or end of the timing cycle.
    • One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
  • Features
    • Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
    • Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
    • Built-in reset feature which cancels timing cycle.
    • Repeat (flasher/pulse) mode.
  • Visual Indicators
    • LED indicates relay is energized.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%
