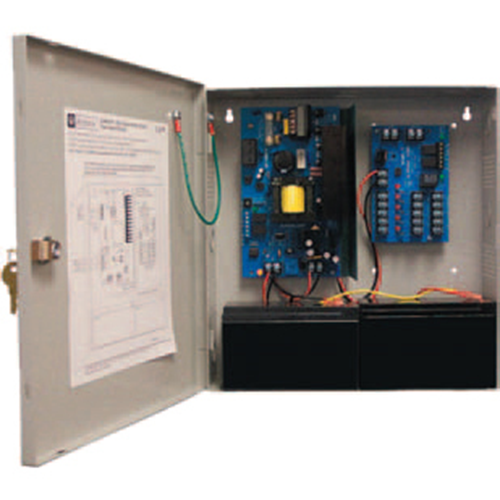

Altronix AL600ULM Multi Output Power Supply/Charger

Name: Altronix AL600ULM Multi Output Power Supply/Charger
Brand: Altronix
SKU: AL600ULM
Price: 199.0 USD
Availability: InStock

$199.00

In stock: 1 available

Product Details

Brand: Altronix

Input
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
- Fire Alarm Panel or Access Control System trigger inputs. N.O. or N.C.supervised trigger input and polarity reversal trigger input.
Output
- 12VDC or 24VDC selectable outputs.
- 6A supply current.
- Five (5) PTC protected Class 2 Rated power limited outputs, rated @ 2A (auto-resettable).
- Output relay energizes when unit is triggered (form "C" contact rated 1A @ 28VDC).
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
- Power fail supervision relay (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators (power supply board).
- Red LEDs indicate condition of power outputs (multi-output board).
- Power & input trigger LEDs (multi-output board).
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
  - BTU/Hr (approx.):
    - 12VDC: 37 BTU/Hr.
    - 24VDC: 74 BTU/Hr.
- System AC input VA requirement: 166.75VA.

Altronix AL600ULM Multi Output Power Supply/Charger
